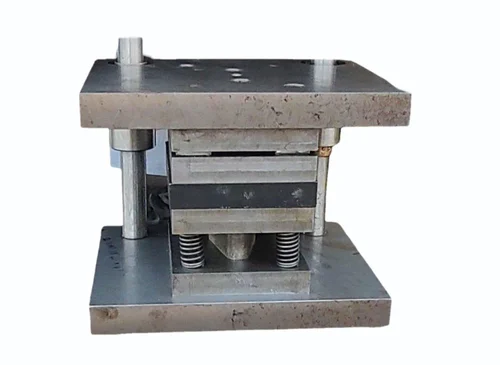

Sheetmetal Press Tools - Stage Type
Stage-type sheetmetal press tools are precision-engineered tooling systems used for sequential sheet metal operations such as blanking, piercing, forming, and bending. These tools are mounted on mechanical or hydraulic presses and are essential for producing high-volume and dimensionally accurate metal components in multiple stages. They ensure consistent part quality, improved efficiency, and cost-effective mass production.
- Ideal for progressive forming operations in multiple stages
- Designed for high dimensional accuracy and repeatability
- Custom-built for component geometry and press compatibility
- Hardened tool steel for long-lasting durability
- Suitable for mild steel, stainless steel, aluminum, and brass sheets
Sheet Metal Industry
Widely used in high-volume stamping of structural sheet parts.
Electrical Hardware
Ensures accuracy in stamping switches, terminals, and enclosures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tool Type | Stage Type (Compound / Combination / Progressive) |
| Material | High-Speed Steel (HSS), D2, D3, Carbide Inserts |
| Sheet Thickness Range | 0.5 mm to 6 mm |
| Press Compatibility | Mechanical & Hydraulic Presses |
| Tolerance | ±0.05 mm or as per component requirement |
